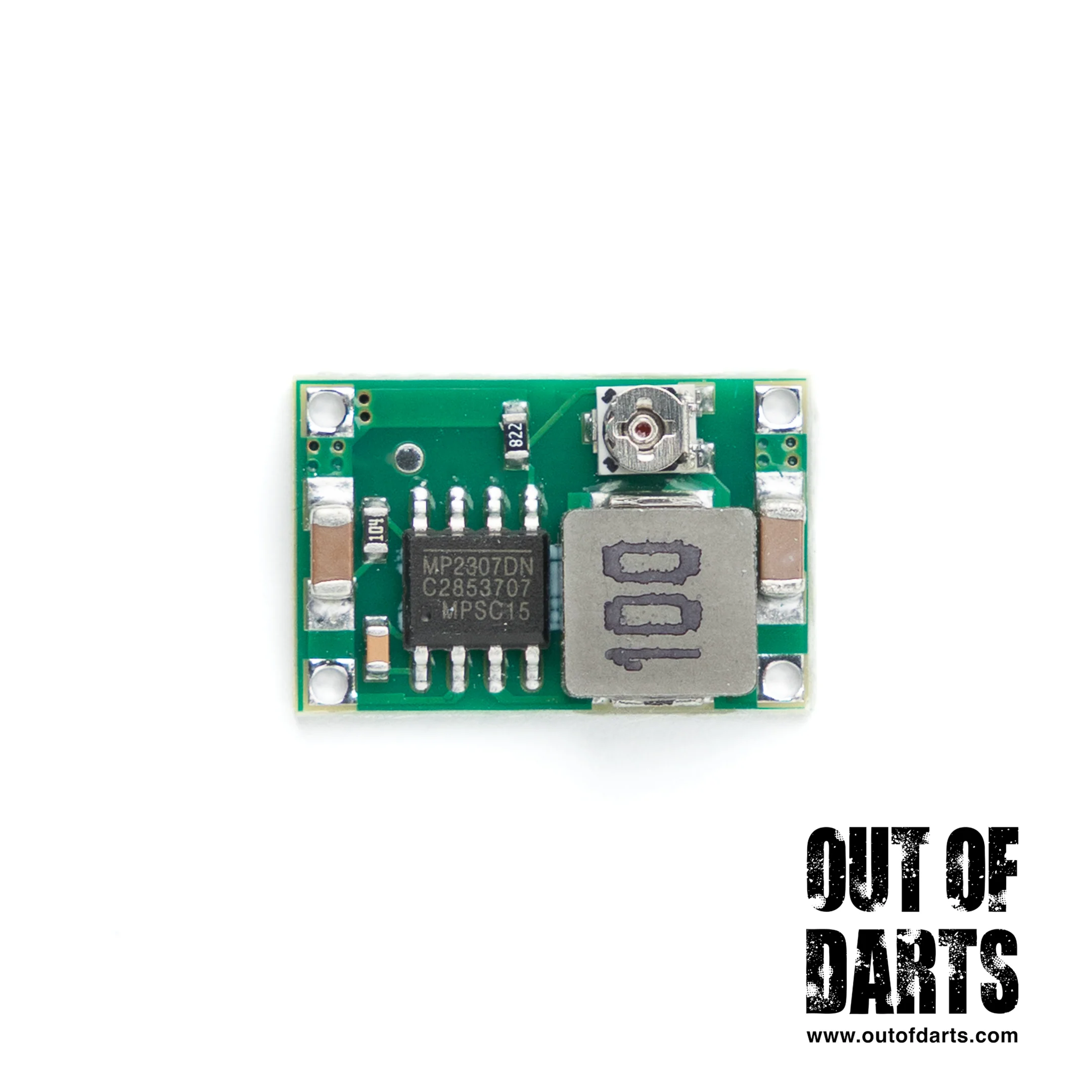

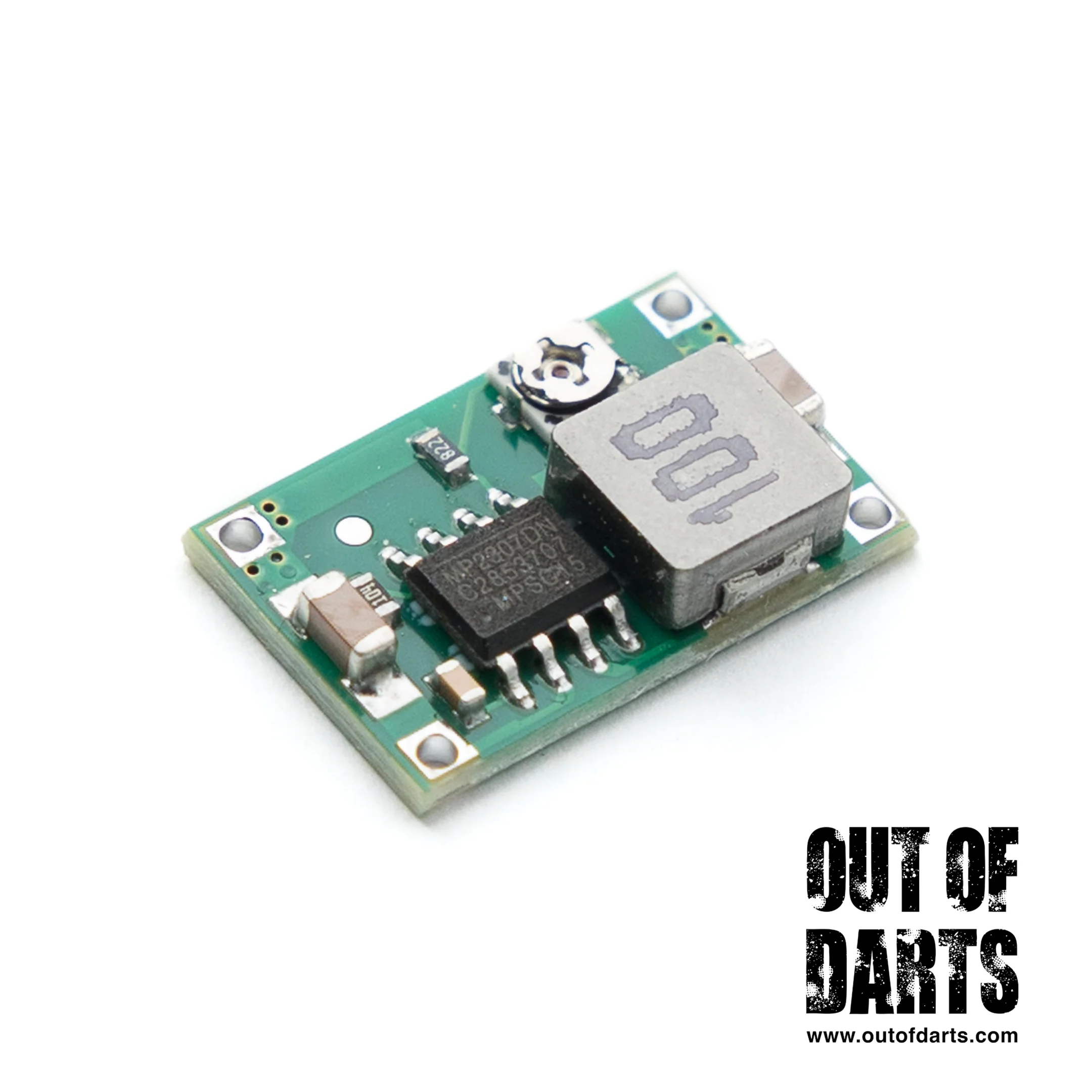

The Adjustable Buck Voltage Converter is a simple power regulator that allows electrical components requiring different voltages to use the same power source. Featuring a Phillips set screw, this buck converter can output 3-20 volts. We've found this especially useful in some flywheeler mods where we only want to mod the flywheel cage to 3S (12V), and a gear motor for a pusher or spinning barrel is only rated for up to 2S (8V) volts.

FEATURES:
• Adjustable Buck Voltage Converter
• Simple voltage regulator board
• Mod only the parts you want to!
• Keep cosmetics operational
• Outputs up to 20V
• Wire terminal pads compatible with up to 18AWG wire

INCLUDES:
• 1 Adjustable Buck Voltage Converter

SPECS:
• Material: Silicon Printed Circuit Board
• Type: Non-isolated synchronous rectification buck converter
• Voltage:
     Input: 4.75-23V
     Output: 1-17V
• Output Current:
     Continuous: 1.8A
     Peak: 3A
• Voltage Regulation margin: ±2.5%
• Dimensions: 17x11x4mm
• Weight: 5g?
• SKU:
